Description

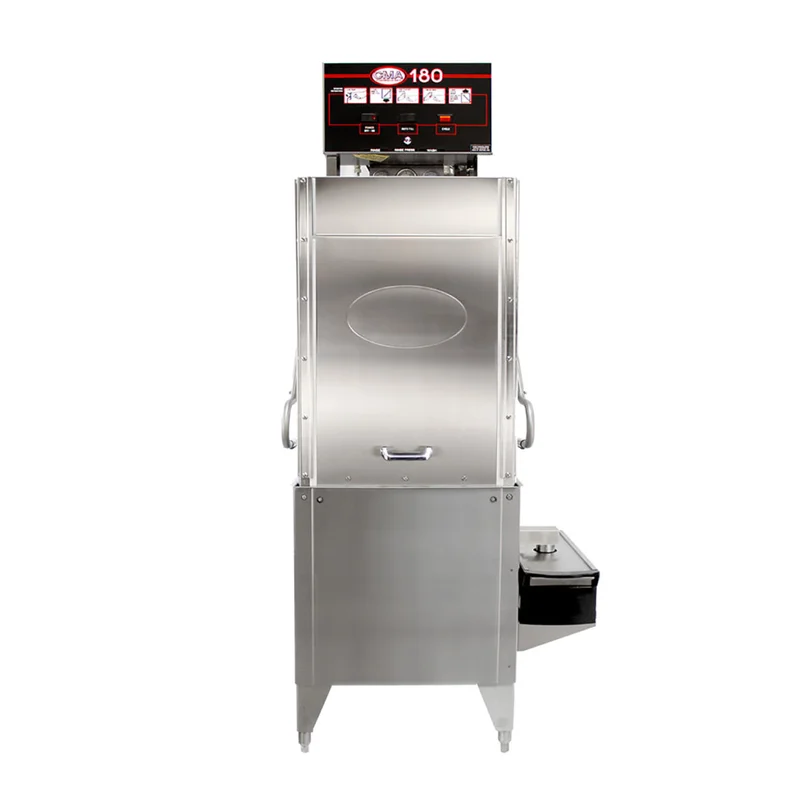

Single rack, corner design. Features all stainless steel construction, chemical pumps, priming switches, top mounted controls, automatic start/stop, pump purging system, delime switch and a Poly Pro scrap accumulator. Produces 40 racks/hour and has a 17” maximum dish clearance.
Features & Benefits
- 40 racks / 160 covers per hour.
- All stainless steel construction assures long life and years of trouble free operation.
- Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps.
- Top mounted controls include built-in chemical pumps and deliming system that assures proper chemical usage.
- Auto start/stop makes operation safe and easy.
- Integrated scrap tray prevents food soil from entering drain system.
- Water inlet comes with built-in strainer, prevents debris from clogging the water valve.
- Dishmachine comes with 2 dishracks.
- Stainless steel impeller offers extended life and service.
- Stainless Steel scrap tray, long lasting.
Specifications:
- Model: C
- Water Consumption:
- Per Rack: 1.7 GAL
- Per Hour: 68 GPH
- Operating Cycle:
- Wash Time (seconds): 45
- Rinse Time (seconds): 30
- Dwell Time (seconds): 15
- Total Cycle (seconds): 90
- Operating Capacity:
- Racks Per Hour: 40
- Wash Tank Capacity: 1.7 GAL
- Pump Capacity: 52 GPM
- Water Requirements:
- Operating Temp: 120 – 140°F
- Water Inlet: 3/4″
- Drain I.P.S.: 2″
- Wash Pump Motor HP: 1
- Dimensions:
- Depth: 25-3/4″
- Width: 25-3/4″
- Height: 56-57″
- Standard Table Height: 34″
- Max Clearance for Dishes: 17″
- Standard Dishrack:
- # of Racks: 1
- Dimensions: 20″ x 20″
- Electrical Rating:
- Voltage: 115
- Total Amps: 16
