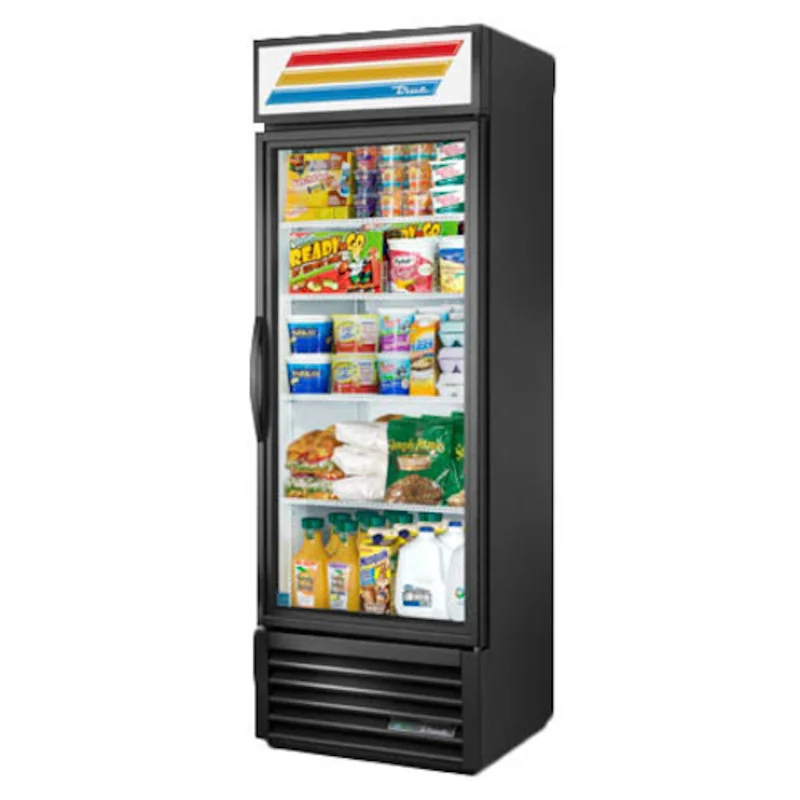

True GDM-19T-HC~TSL01 27″ Glass Door Refrigerated Merchandiser with LED Lighting

Description

The True GDM-19T-HC~TSL01 attractively merchandises your products and encourages impulse buys with a “Low-E”, double pane thermal glass door and LED lighting. The refrigerated merchandiser has a durable, non-peel black or white powder coated cold rolled exterior and an NSF approved white aluminum interior liner and stainless steel floor.

The GDM-19T-HC~TSL01 uses the new environmentally friendly R290 hydrocarbon refrigerant. The energy efficient, factory balanced, refrigeration system holds 33°F to 38°F.

Specifications

• Model: GDM-19T-HC~TSL01
• Doors: 1
• Shelves: 4
• Electrical:
• 1/3 HP
• 115/60/1
• 5.4 Amps
• 5-15P NEMA plug & 9′ cord
• Dimensions: 27″ W x 24-7/8″ D x 78-5/8″ H
• Warranty: 3-year warranty on all parts and labor and an additional 4-year warranty on compressor (U.S.A only)
• Energy Star Qualified

Standard Features

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.

CABINET CONSTRUCTION

• Exterior – non-peel or chip black or white powder coated cold rolled steel; durable and permanent.
• Interior – attractive, NSF approved, white aluminum liner with stainless steel floor.
• Insulation – entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Welded, heavy duty steel frame rail, black or white powder coated for corrosion protection.
• Frame rail fitted with leg levelers.
• Illuminated exterior sign panel. Variety of sign options available.

DOOR

• “Low-E,” double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficiency technology.
• Door fitted with 12″ long integrated handle.
• Self-closing door. Positive seal, torsion type closure system.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

SHELVING

• Four (4) adjustable, heavy duty PVC coated wire shelves 22-9/16”L x 18-1/4”D (574 mm x 464 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2″ (13 mm) increments.

LIGHTING

• LED interior lighting, safety shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the potential of corrosion.
• Convenient clean-out drain built in cabinet floor.
• Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
