Description

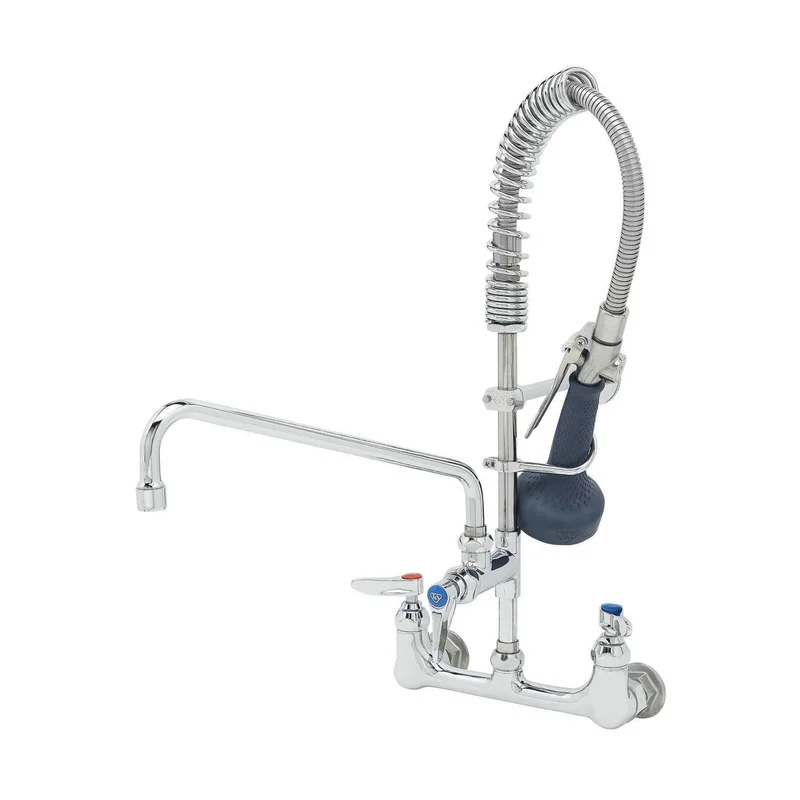

The T&S Brass MPR-8WLN-12 is a commercial wall mount mini pre-rinse unit designed for dishwashing, prep sink, and warewashing stations where overhead clearance is limited and a compact, low-profile footprint is required. It ships as a complete assembly with both a mixing faucet and an add-on swing nozzle, giving operators two functional outlets at one installation point.
- Wall mount mini pre-rinse assembly for commercial foodservice use, including an 8″ mixing faucet base, 8″ rigid riser, 1.07 GPM JeTSpray valve with insulated grip handle, spray valve holder, and overhead spring.
- Constructed with a polished chrome plated brass body, tubular nozzle, add-on faucet body, riser, and spray valve, with a stainless steel hose and chrome plated metal handles.
- Unit stands 22-1/8″ high overall; the reduced height makes it suitable for commercial kitchens where overhead or above-sink space is at a premium.
- Centers are adjustable, ranging from 7-3/4″ to 8-1/4″ to accommodate variations in existing wall plumbing.
Includes a 24″ stainless steel flex hose, a 6″ adjustable wall bracket for secure mounting, and 1/2″ NPT female inlet connections for integration with standard plumbing.
- Features T&S EasyInstall design: the riser uses a lock nut and bushing that pop down into the faucet base, so only tightening the nut is required to secure the riser rather than threading it into the base.
- Includes a 12″ swing nozzle with stream regulator outlet (Series 1), providing a second functional faucet outlet at the same installation for added sink versatility.
Certifications:
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372. 2019 DOE PRSV – Class II compliant.
Dimensions: Overall height: 22-1/8″; faucet centers: adjustable 7-3/4″ to 8-1/4″; 12″ swing nozzle; 8″ riser; 24″ hose; 6″ wall bracket
