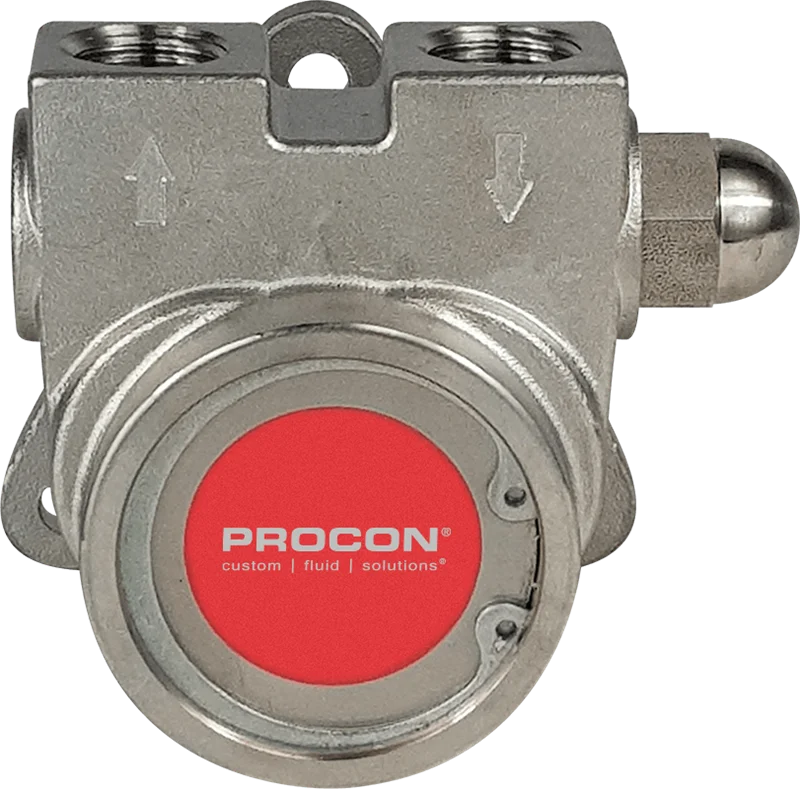

Procon® 113E100F31BA Series 3 Rotary Vane Fluid Pump – Stainless Steel- 100GPH (300LPH), EPDM/Nitrile, Standard-Non External adjust

Description

Procon® Rotary Vane Fluid PumpAll pumps have a nominal speed of 1725 RPM a maximum di scharge pressure of 250 PSI clockwise rotation and an adjustable relief range (if available).
Series 3
Manufacturer No: 113E100F31BA170
Mount: Bolt-On
DriveCoupler: Single Flat S/S
Flow Rate (GPH): 100 GPH
Seal: Nitrile
Re lief Setting: 170 PSI
Capacity: 15 to 140 GPH
Nominal Speed: 1725 RPM
Max. Discharge Pressure: 250 psi
Rotation: Clockwise
Dry Weight: ~2.5lbs
Self-Priming (water): 6 ft. max. lift
Series 3 Pumps have a stainlesssteel body and is design for operating flow rates of 15 GPH to 140 GPH. This series is the same as t he Series 1 pumps but does not include the integral strainer.
