Description

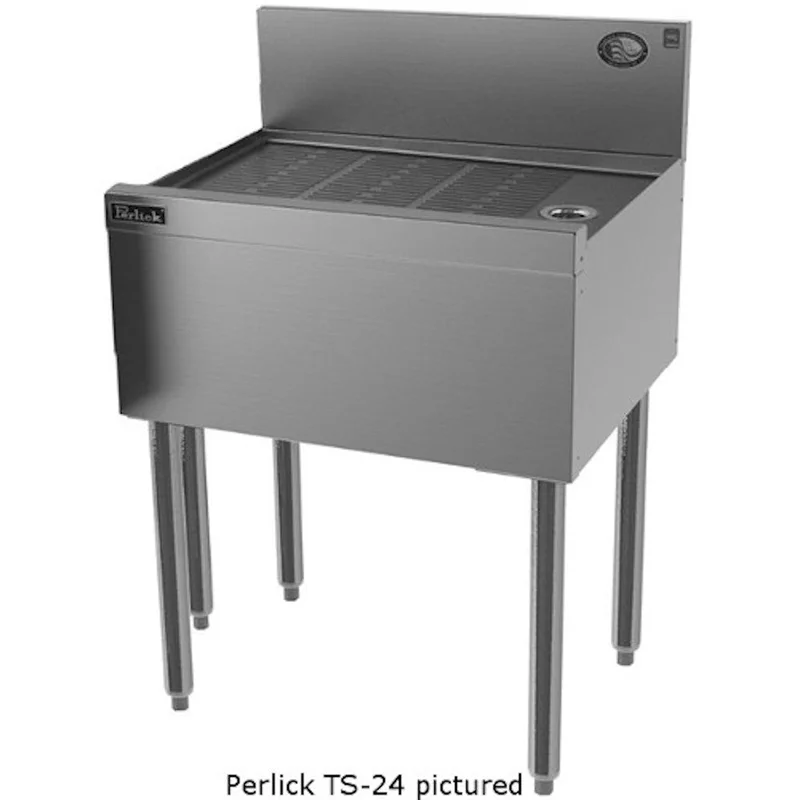

The Perlick TS22 standard drainboard is a flexible solution for draining recently washed glassware and for storing soiled glasses. This unit is 22″ W x 18-9/16″ D with a 6″ H backsplash. The drainboard is made of embossed stainless steel. The legs are stainless steel and screw in for quick installation. The TS22 comes with “rust free” thermoplastic feet for extra durability.
Features
- Embossed stainless steel drainboard
- Screw-in legs for fast installation
- Stainless steel legs install without tools and have “rust free” thermoplastic feet
- Also available in 1″ W increments from 13″-23″ for creative freedom to fill any bar shape and length
Specifications
- Model: TS22
- Dimensions: 22″ W x 18-9/16″ D x 36-1/2″ H
- Front & Sides: Stainless steel
- Backsplash: Stainless steel 6″ high (4″ optional) with 1″ return at top, mechanically fastened and sealed to top with steel support brackets
- Back: Galvanized steel
- Drainboard: Embossed stainless steel, 16″ deep front to back. All horizontal and vertical edged 1/4″ radius with balled corners. Underside reinforced with welded brackets. Stainless steel drain socket.
- Legs: 1-5/8″ tubular, stainless steel with 1″ adjustable thermoplastic foot
- Plumbing: Drain connection – 1-1/2″ NPS male
