Description

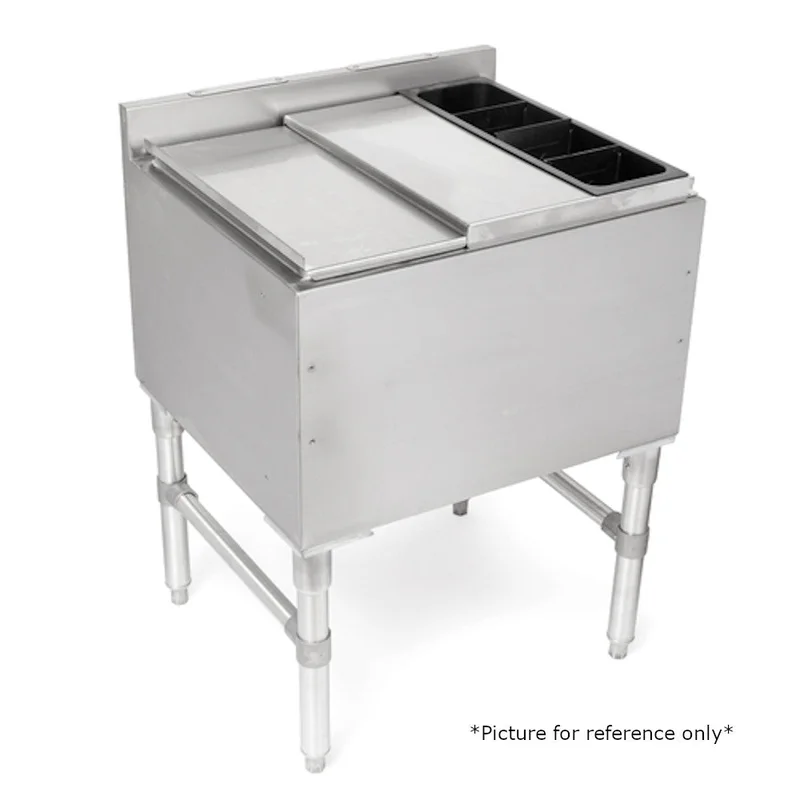

Entirely made of stainless steel, the John Boos UBIB-1830-CP10 underbar ice bin and cocktail unit is durable, attractive, and easy to maintain. Stainless steel improves the quality and endurance of your unit, increasing its longevity. It has a #4 polish satin finish, making your underbar station more visually appealing. It is simple to clean which improves sanitation. The UBIB-1830-CP10 is NSF certified.
Features and Benefits
- ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
- TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
- SLIM LINE 18” DEEP FRONT TO BACK
- 28” W x 15” FRONT-TO-BACK x 13-1/2” DEEP FOAM INSULATED ICE BIN WITH DRAIN
- 10 CIRCUIT COLD PLATE
- INCLUDES 2-PIECE SLIDING LID
- STANDARD THREADED INSERTS ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
- STANDARD FRONT INSERTS FOR SPEED RAIL ATTACHMENT
- ACCESS PLATES ON TOP OF BACKSPLASH FOR SODA GUN LINES
- STAINLESS STEEL FRONT TO BACK BRACING
Materials
- TOP: 18 GAUGE TYPE 300 STAINLESS STEEL
- FRONT APRON: 18 GAUGE TYPE 300 STAINLESS STEEL
- BACKSPLASH: 18 GAUGE TYPE 300 STAINLESS STEEL
- SIDES: 18 GAUGE TYPE 300 STAINLESS STEEL
- LEGS AND BRACING
- BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
- 1-1/4” FRONT TO BACK BRACING
- 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
- 1-7/8” DRAIN PLUG
- 1” MPT 3-1/4” LONG DRAIN CONNECTION
Specifications
- Model: UBIB-1830-CP10
- Dimensions: 32.5″ H x 30″ W x 18″ D
- Approximate Weight: 199 lbs.
- Certifications: NSF
