Description

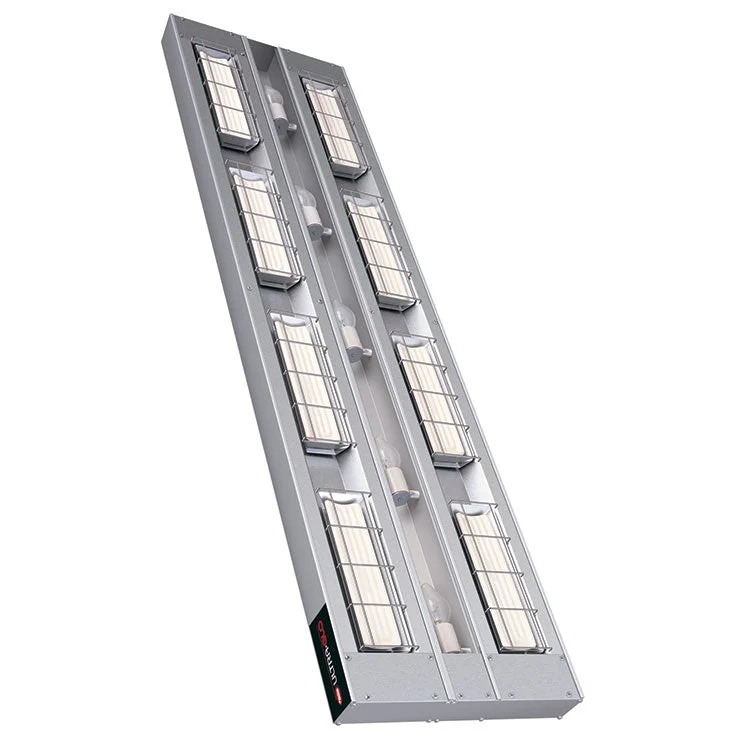

This Hatco UGAHL-24D3 High Wattage Infrared Heat Lamp with Lights and 3″ Spacer is ideal for keeping large amounts of food products warm and ready to be served. With ultimate holding power, this Infrared Heat Lamp blankets the entire holding surface with pre-focused heat, even the outer edges where heat loss is the greatest. This Foodwarmer is designed to be adaptable for any location or configuration and has increased height so you can have improved working clearance. With a double ceramic heat strip and aluminum housing, this Heat Lamp comes with adjustable angle brackets for convenient mounting. Leadtime may vary, please call for details.
Features and Benefits:
- High wattage (1620 watts)
- 3″ Spacer
- Double ceramic heat strip
- Aluminum housing
- Adjustable angle brackets
- Sturdy continuous extruded aluminum housings eliminate sagging
- Adjustable angle brackets for mounting and leads with 3′ (914 mm) conduit whip
- Pre-focused heat pattern provides an increased pyramidal dimension, concentrating heat at the edges where heat loss is the greatest
Different voltage available-Please specify!
| Volts | Watts | Amps |
| 120 | 1620 | 13.5 |
| 120/208 | 1620 | 8.2 |
| 120/240 | 1620 | 7.3 |
| 220 | 1612 | 7.3 |
| 240 | 1620 | 6.8 |
Specifications:
- Model: UGAHL-24D3
- Dimensions: (H x W x D): 2.5″ x 24″ x 15″
- Mounting Requirements: Must be mounted at least 1″ (25 mm) below shelf, and 3″ (76 mm) from back wall.
- Mounting Height: 22″ to 26″ (559-660 mm)
- Minimum Space Clearance: Do not install Ultra-Glo® strip heaters above or around combustible surfaces.
- Shipping Weight: 19 lbs (9 kg)
- Warranty: All ceramic heating elements warranted against burnout for one year
