Description

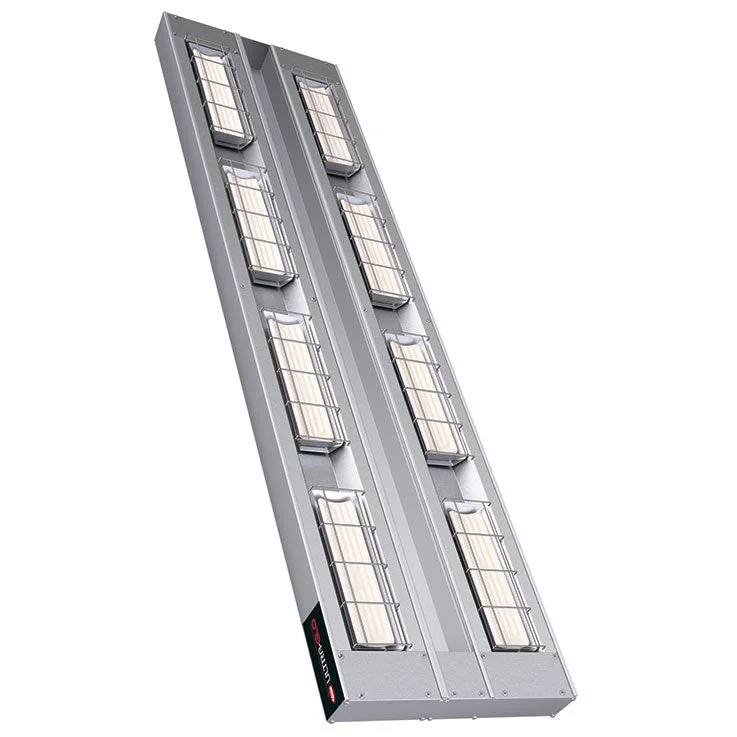

This Hatco UGA-42D6 Infrared 2240 Watt Heat Lamp with 6″ Spacer and Double Ceramic Tile is ideal for keeping large amounts of food products warm and ready to be served. With ultimate holding power, this Infrared Heat Lamp blankets the entire holding surface with pre-focused heat, even the outer edges where heat loss is the greatest. This Foodwarmer is designed to be adaptable for any location or configuration and has increased height so you can have improved working clearance. With a double ceramic heat strip and aluminum housing, this Heat Lamp comes with adjustable angle brackets for convenient mounting, leads with 3′ conduit whip, and a 1 year warranty against burnout for all ceramic heating elements. Leadtime may vary, please call for details.
Features and Benefits:
- Standard wattage
- 6″ Spacer
- Double ceramic heat strip
- Aluminum housing
- Sturdy continuous extruded aluminum housings eliminate sagging
- Adjustable angle brackets for mounting and leads with 3′ (914 mm) conduit whip
- Pre-focused heat pattern provides an increased pyramidal dimension, concentrating heat at the edges where heat loss is the greatest
Different voltage available-Please specify!
| 208 Volts | Watts | Amps |
| Circuit 1 | 1120 | 5.4 |
| Circuit 2 | 1120 | 5.4 |
| 240 Volts | Watts | Amps |
| Circuit 1 | 1200 | 5.0 |
| Circuit 2 | 1200 | 5.0 |
| 220 Volts | Watts | Amps |
| Circuit 1 | 1008 | 4.6 |
| Circuit 2 | 1008 | 4.6 |
*Unit with multiple circuit connections. Each circuit may require a separate circuit breaker.
Specifications:
- Model: UGA-42D6
- Dimensions: (H x W x D): 2.5″ x 42″ x 18.82″
- Mounting Requirements: Must be mounted at least 1″ (25 mm) below shelf, and 3″ (76 mm) from back wall.
- Mounting Height: 18″-22″ (457-559 mm)
- Minimum Space Clearance: Do not install Ultra-Glo® strip heaters above or around combustible surfaces.
- Shipping Weight: 27 lbs (12 kg)
- Warranty: All ceramic heating elements warranted against burnout for one year
