Glycol Beer Chiller – UBC ChillPro 1150V Power Pack, 1/6 HP 1,150 BTU Vertical Long-Draw Draft

Description

A glycol beer chiller (also called a glycol power pack) is the heart of a long-draw draft beer system. It chills a propylene-glycol and water bath and circulates it alongside the beer lines, holding every pour at serving temperature from the keg cooler to the faucet. The food-grade glycol never touches the beer.

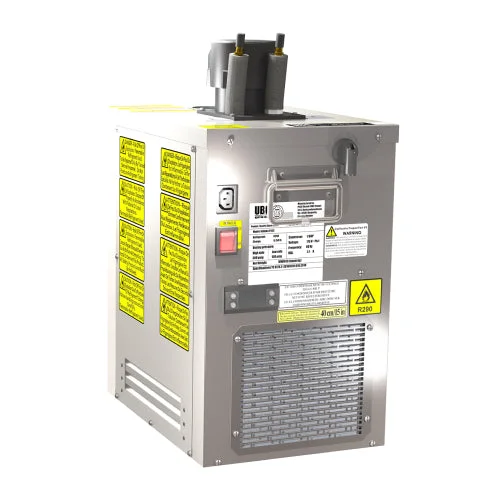

The UBC ChillPro 1150V delivers 1,150 BTU of cooling from a 1/6 HP compressor in a compact vertical cabinet, sized for short-run commercial long-draw draft systems where floor space is tight.

Specifications

• Cooling capacity: 1,150 BTU
• Compressor: 1/6 HP
• Pumps: 1
• Cabinet: vertical
• Cooling agent: food-grade propylene glycol

Sizing and setup

As a rule of thumb, plan for roughly 3/4 HP per 100 ft of insulated trunk-line run, adding headroom for high tap counts or hot mechanical rooms. Mix the bath with food-grade propylene glycol and distilled water per the manufacturer manual. Not sure which chiller fits your run length and tap count? Talk to a specialist and we’ll size it with you.
