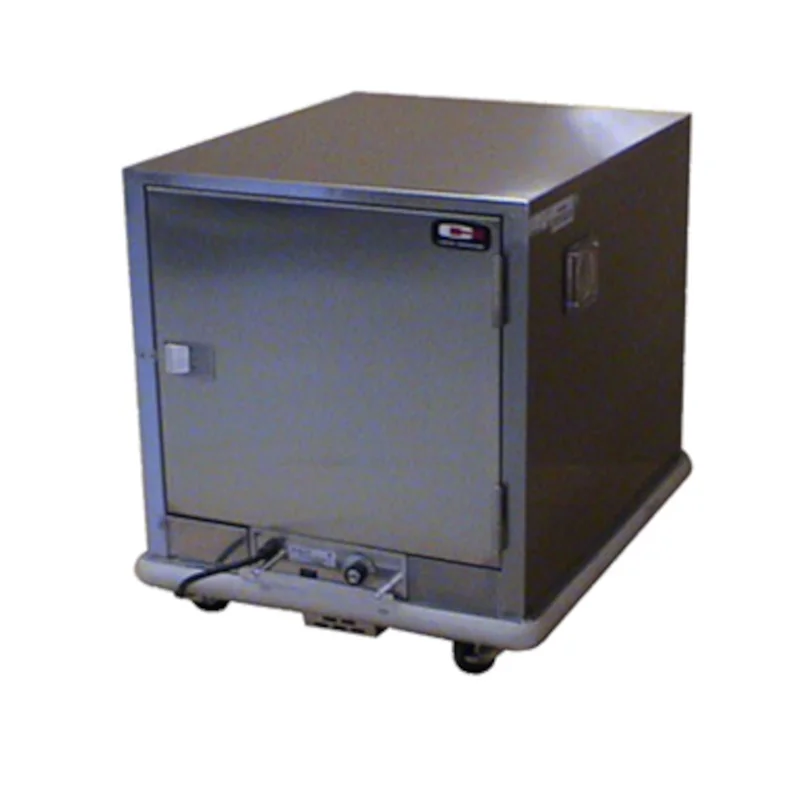

Carter-Hoffmann PH185 Undercounter Mobile Heated Cabinet

Description

This Carter-Hoffmann PH185 Undercounter Mobile Heated Cabinet is conveniently stored, easy to use, and keeps your food items warm and ready to serve. Its mere 30-1/2″ height allows it to be tucked away underneath any standard countertop, while its 20-7/8″ inside working height enables it to hold five 18″ x 26″ or ten 12″ x 20″ trays or pans. It has a dial-type thermometer, making it easy to set for temperatures up to 200°F for cooking or 160°F for preheating. This Heated Cabinet is maximized for heat retention through its 1″ thick high density continuous wrap-around fiberglass insulation and its stainless steel construction adds both strength and durability to this Undercounter Cabinet.

Features and Benefits:

• Even and efficient heating
• Quick heat up and recovery
• Stainless steel interior and exterior
• Capable of heating up to 200°F
• Preheats at 160°F in approximately 25 minutes
• Dial thermometer with remote sensing bulb
• Adjustable stainless steel tray/pan slides

Construction

• Stainless steel base frame
• Completely welded turned-in seams
• Double panel welded stainless steel door
• Concealed hinges
• 180 degree door swing
• Flush-mounted heavy-duty sliding latch
• Easy grip handle
• Non-marking gray vinyl bumper
• 3/16″ extruded aluminum frame
• Polyurethane tread 3″ casters with sealed roller bearing (Two casters are fitted with brakes)
• Offset “wheel ahead” pattern
• 1″ high density continuous wrap-around fiberglass insulation in top, bottom, and sides

Specifications:

• Model: PH185
• Tray/Pan Capacity*: (5) 18″ x 26″; (10) 12″ x 20″
• Slide Pairs Standard: 5
• Inside Working Height: 20-7/8″ (530mm)
• Electrical Requirements:
• Volts: 120
• Watts: 1000
• Amps: 8.3
• Cord: 6′
• Plug: NEMA 5-15P
• Overall Dimensions: 30-1/2″ (775mm) H x 36″ (914mm) D x 30-5/8″ (778mm) W
• Caster Diameter: 3″ (76mm)
• Shipping Weight: 225 lb. (102kg)
• *Capacity shown at 3-1/2″ spacing. Tray slides adjustable on 1-3/4″ increments
