Blodgett OEM # 36156, 31 1/2″ Steel Burner Assembly

Description

:

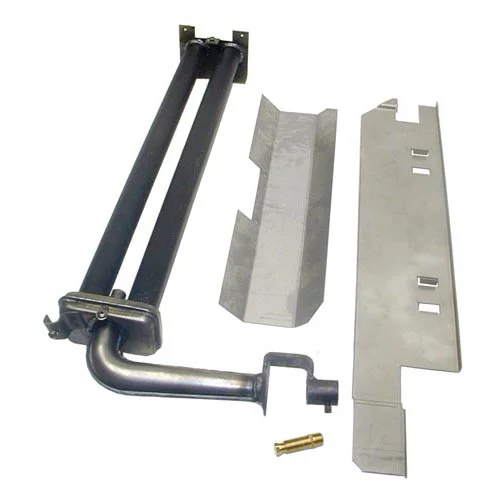

STEEL BURNER, 31-1/2″ OVERALL STRAIGHT LENGTH ,
[ BURNER TUBE 1.67″ DIA X 27″ (BOX CENTER & MOUNTING
PLATE END )], BURNER TUBES WIDTH ACCROSS 4-3/4″ WIDE,
“L” LEG TO BOX = 15-1/4″, #56 ORIFICE
INCLUDES WALL DEFLECTOR & BURNER DIVIDER.
4 MACHINE SCREWS 1/4″-20 X 3/4″ SS
6 FLAT WASHERS 1/4″, 1 LOCK WASHER 1/4″,
1 BURNER ORIFICE 1/4″ MPT X .594″, # 56
1 NIPPLE, BRASS, 3/8″ MPT X 1-7/8″ W/ HEX
1 AIR SHUTTER 2-1/4″ OD X 3/8″ FPT, 1 BOLT 5/16″-18 X 3/4″
BLODGETT OVEN 901, 911, 916, 931, 951, 960, 961, 966, 981,
999

Replaces the following Manufacturer’s Products

OEM Numbers are used for reference only.
