Analox Ax60+ CO2 Leak Detector Kit – NFPA/IFC/OSHA Compliant Wall-Mount Monitor

Description

Analox Ax60+ Commercial CO2 Leak Detection System

Code Compliance & Safety Requirements

For contractors managing draft beer or carbonation installs, the Analox Ax60+ provides an all-in-one solution to meet IFC, NFPA 55, NBIC, and OSHA safety mandates. It is specifically designed to protect personnel in confined spaces—such as walk-in coolers and storage rooms—where CO2 enrichment from leaks can occur. This unit is UL Approved and provides the necessary documentation to clear commercial fire inspections.

Field Installation & System Compatibility

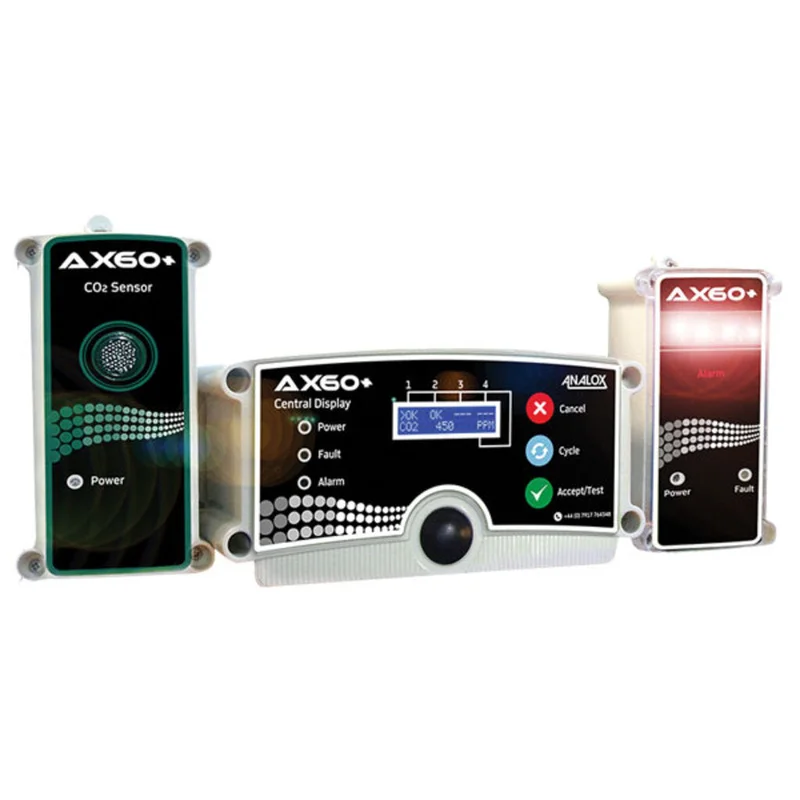

The Ax60+ is a modular, wall-mountable system engineered for the high-moisture, harsh environments of breweries and restaurants. It features a Central Display Unit (CDU) for remote operation and control, allowing the tech to check levels outside the hazardous area. The system is 110V powered and provides a safe <24V output for the sensor network.

Advanced Tech Specs & Relay Logic

• Scalable Architecture: The system can be expanded to include up to 4 sensors and 8 alarms, making it compatible with large-scale multi-keg or multi-room facilities.
• Configurable Relays: Features relay ‘failsafe options’ for integration with building management systems (BMS), exhaust fans, or CO2 shut-off valves.
• Industrial Alarms: Equipped with high-visibility >100cd internal strobes and a minimum 80dbA audible alarm to ensure alerts are noticed in noisy mechanical rooms.
• Sensor Precision: Detects CO2 in a range of 0.1% to 5% with a response time of less than 30 seconds.

Unit Dimensions & Performance:

Use Cases for the Service Tech

Whether retrofitting a restaurant for a Draft Beer System or installing a new brewery CO2 storage area, the Ax60+ is the industry standard. Its “out-of-the-box” readiness—pre-configured to 0.5% TWA and 1.5%/3.0% limits—minimizes time spent on field calibration and ensures the site is immediately compliant.
