Description

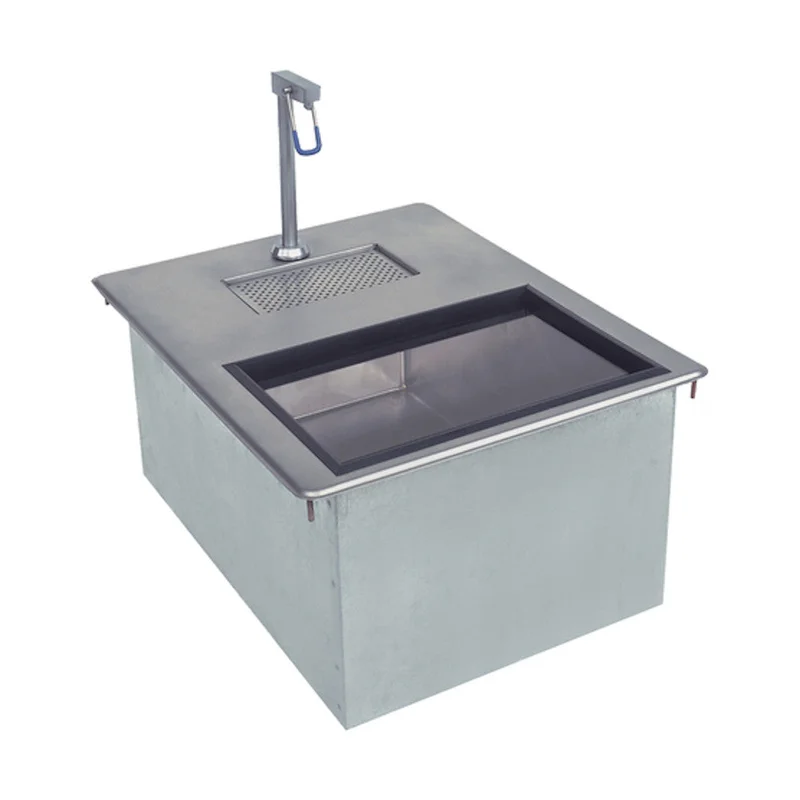

The Advance Tabco D-24-WSIBL2 drop-in ice bin with water faucet fits the cut out size of 15-1/4″ x 20-3/8″. The ice bin on this unit measures 18″ x 13.5″ x 10″ and can hold up to 50lbs of ice. It also comes with the K-54 deck mount faucet with “Push-back” actuator.
The D-23-WSIBL2 feautres a 12″ deep insualed ice bin. It also features a removable grate that covers the drip pan. A rubber thermal breaker reduces condensation on the ice bin and it is supplied with a stainless steel sliding cover.
Specifications
- 1” IPS drain (drip pan and ice bin)
- Filler faucet has a cold connection with 1/2” IPS
- Jacket: 20 gauge galvanized steel
- Ice Bin: 20 gauge, 300 stainless steel
- Cover: 20 gauge stainless steel
- Molding: Extruded black polyethylene thermal breaker marine edge
- Insulation: 2lbs. density foam-in-place insulation
- K-54 Faucet: Acrylic lever arm
- 50 lb ice capacity
- Dimension: 18″ x 21″
